QTM Camera check and walk trough
This walk trough is designed to check from start to end if the cameras are running.

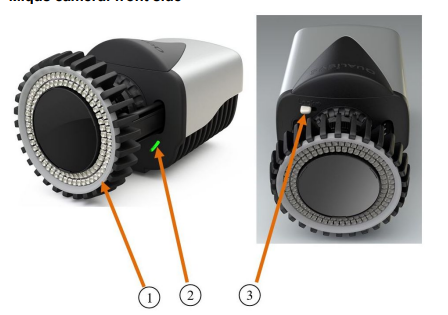

  1. Check Camera status
    1. Led-Ring:
      Green light: Active Camera Indicator for setup - good
      Pulsing Green/GreenAmber light: system is beeing calibrated - good during calibration
      Amber light: Camera is booting - good freshly after power on
      Pulsing Amber light: Camera is waiting for an IP Address - check wiring
      No Light: Check Power
    2. Tracking status indicator
      Green light: camera is switched on -good
      Yellow light: camera is tracking - everthing should be fine normally
      Flashing green light: Synchronization in progress - should be disappearing latest after a few minutes after bootup
      Flashing red light: Camera has an failure - the camera might need an replacement
    3. Lock lever for Flash ring

BOOT order:
  1. Led Ring constant orange -> Camera Boots
  2. Led Ring Blinking orange -> Camera waits for connection to the System
  3. Led Ring off -> Camera succesfully connected to the system
  4. Tracking status indicator green -> camera is prepared
  5. Tracking status indicator yellow -> camera is actively working
